Item description from the seller

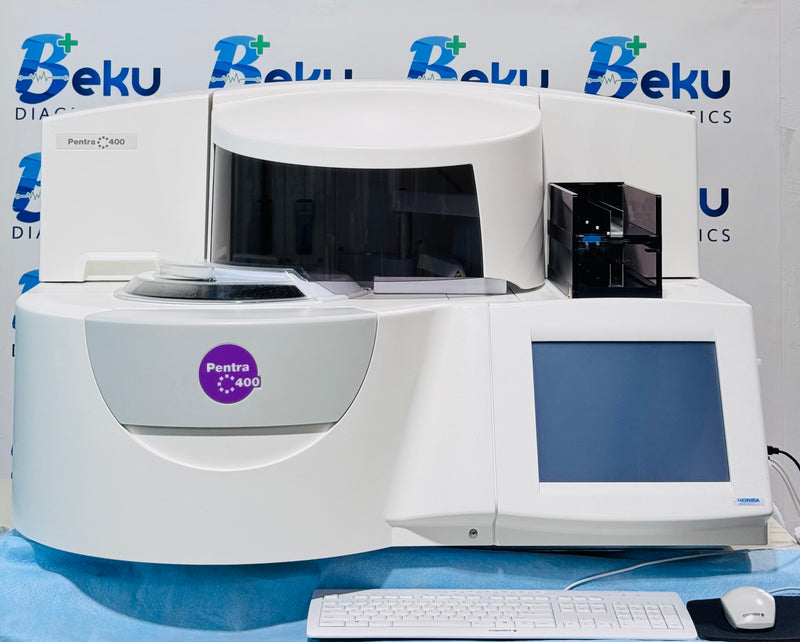

BEKU DIAGNOSTICS, INC.

General Description

• Analysis Method Types:
• Spectrophotometry: Colorimetry and Turbidimetry
•

• Potentiometry: Direct (Serum or Plasma) and Indirect (Urine)
• Up to 55 assays on board
•

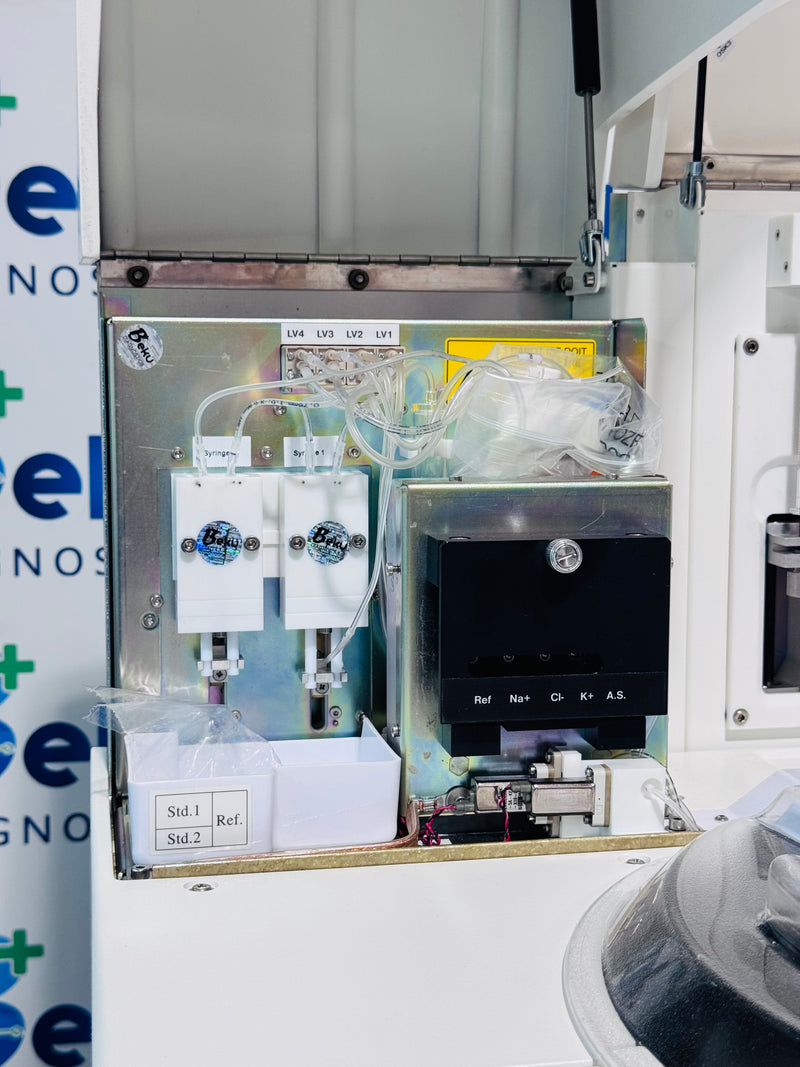

• Optional ISE Module (Na⁺, K⁺, Cl⁻)
•

• Maximum Throughput: 420 tests/hour
•

• CE Marked

Sample Handling

• Sample Capacity: 6 racks with 10 sample positions for primary tubes or cups
•

• Continuous loading
•

• Positive Sample Identification: Integrated Barcode Reader and Tube Presence Detector
•

• Sample Integrity: Level, Shock, and Clot Detection
•

• Sample Collection Format: 0.7, 4, 5, 7, and 10 mL (diameter: 16 mm)
•

• Sample Specimen Types: Serum, Plasma, Urine, CSF, Whole Blood, Homogeneous Fluids
•

• Sample Volume: 2 to 380 µL
•

• Automatic Sample Dilution: From 1/2 to 1/22,500
•

• ISE Volume: 20 µL (Indirect) or 60 µL (Direct)
•

• Automatic Post Concentration: From x2.0 to x10.0
•

• Automatic Re-run

Calibrator/Control Handling

• Positioning: Calibrator/Controls can be placed on Sample or Reagent Tray
•

• Automatic Standard Dilution Series:
• Main Direct: 1/2 to 1/150
•

• Main Indirect: 1/2 to 1/1508

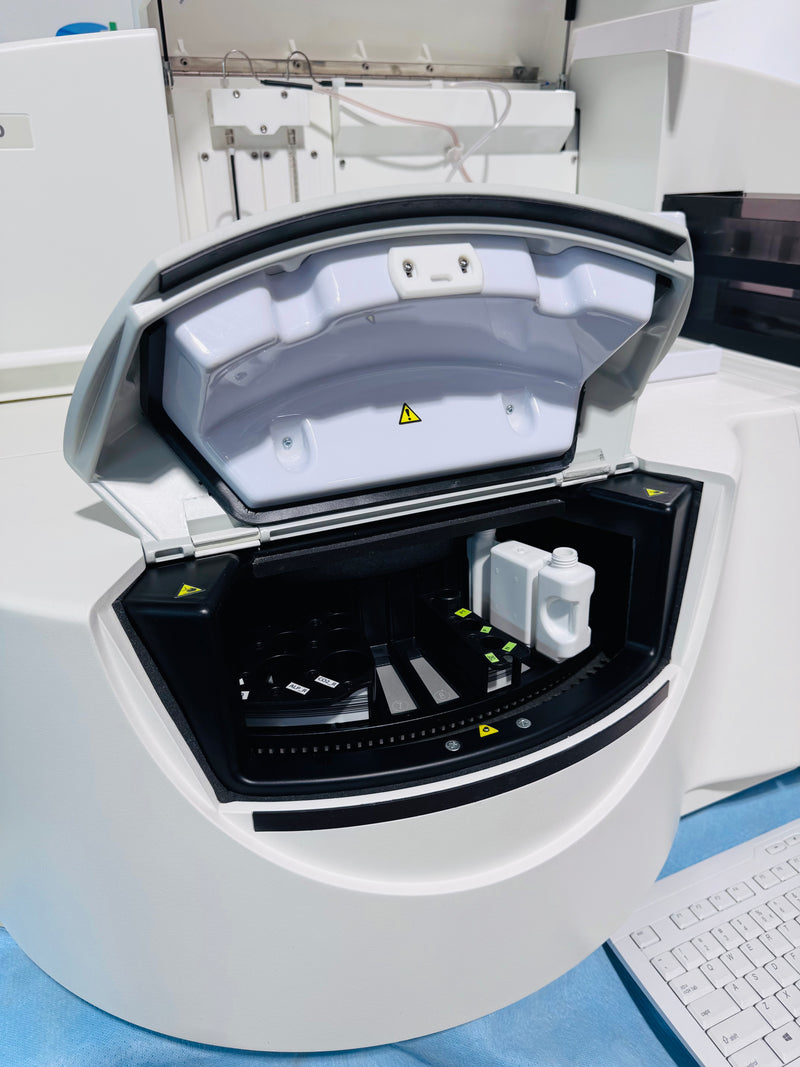

Reagent Handling

• 52 Reagent Positions on Board:
• 44 in a closed refrigerated area (2–10°C)
•

• 8 at room temperature
• Positive Reagent Identification: Integrated Barcode Reader
•

• Reagent Probe: Level Detection and Preheating
•

• Reagent Management with Cassettes:
• Automated Reagent On-board Stability Check
•

• Test Countdown with Automatic Backup
• Reagent Volume: 2 to 600 µL

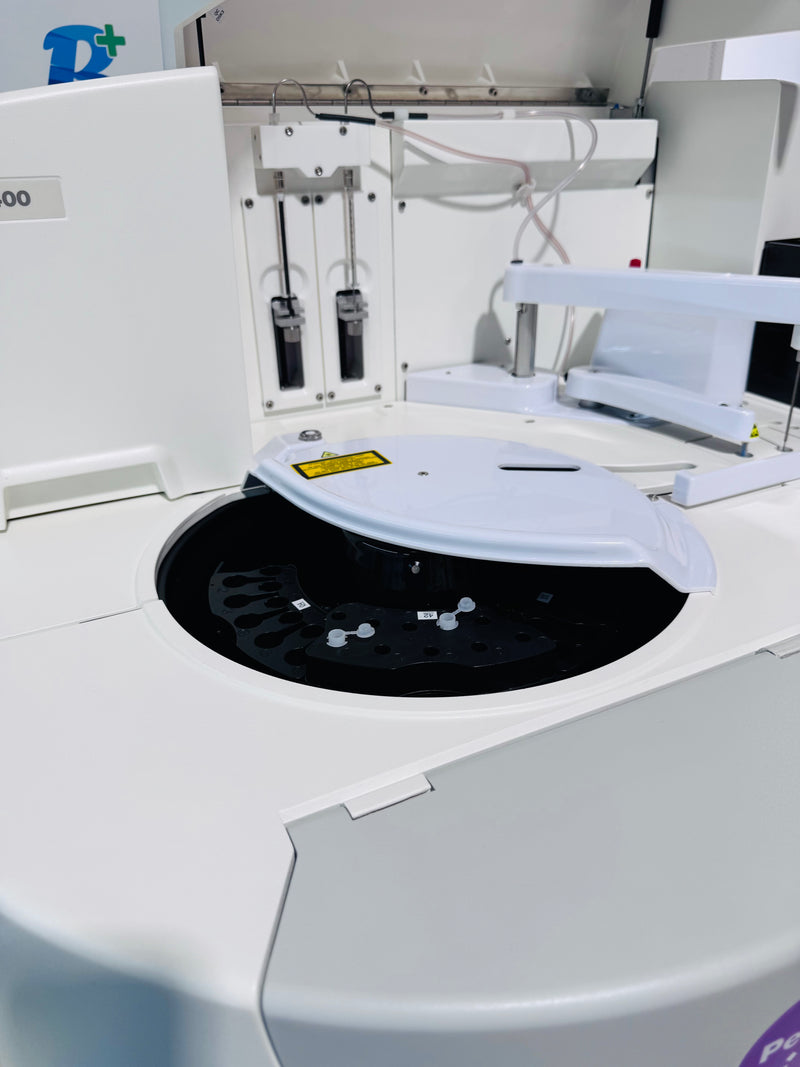

Reaction System

• Reaction Volume: 150 to 600 µL
•

• Reaction Temperature: Air bath at 37°C
•

• Photometer Reaction Cycle: 12 seconds
•

• Mixing: Teflon-coated Stirrer
•

• Reaction Time: 1 to 100 cycles
•

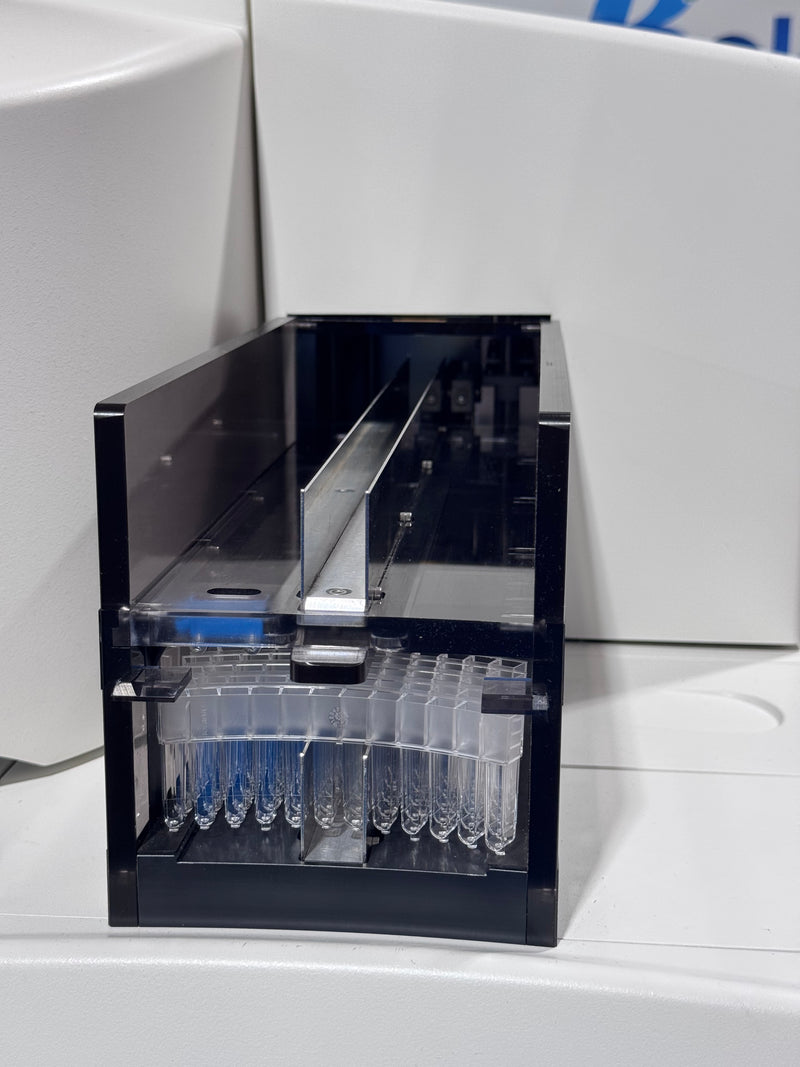

• Cuvettes: Disposable Acrylic
•

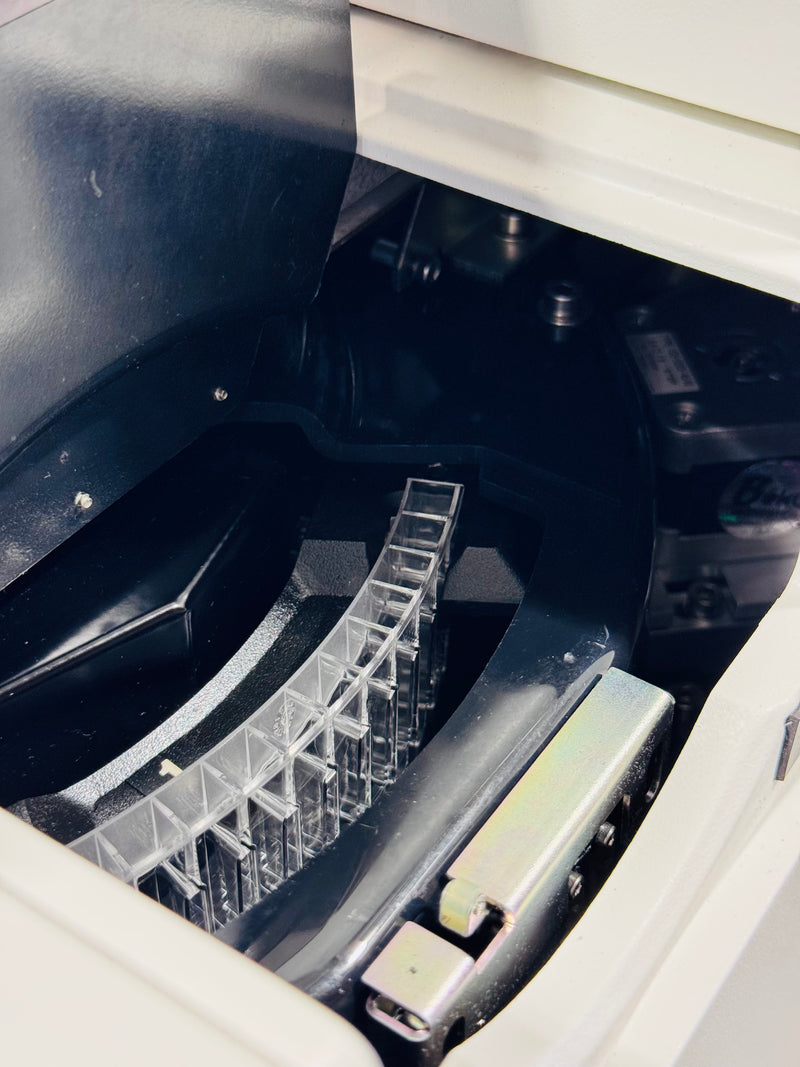

• Cuvette Handling:
• Automatic Cuvette Changer
•

• Cuvette Capacity: 36 segments (432 cuvettes)
• Integrated Calculation Algorithms: 7
